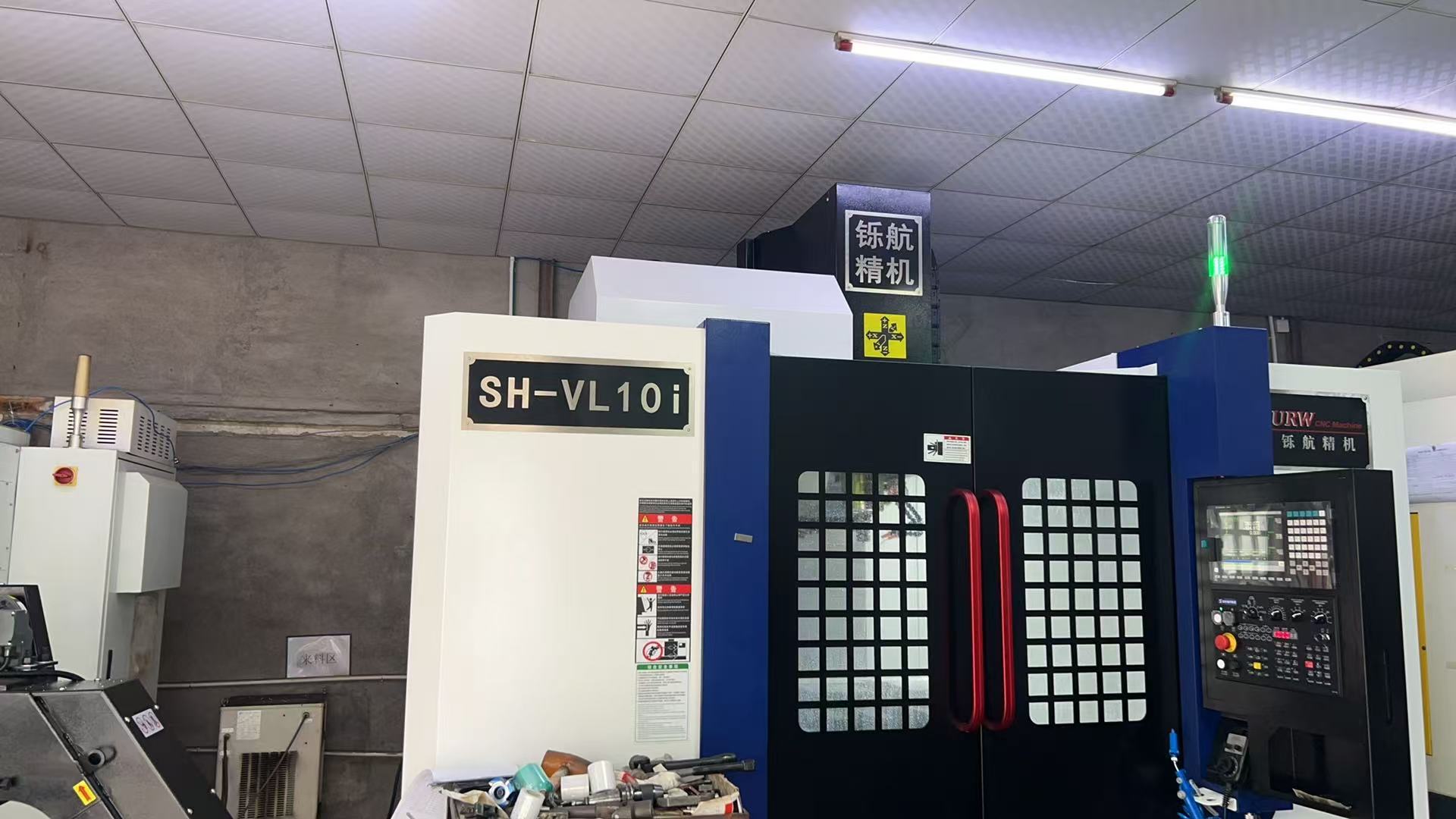

4 Axis Cnc Vertical Machining Sh1160 Vertical Milling Machine Vmc Machine

No.1601444315523
$23000.00
model number:
V-1160
number of axes:
3
spindle motor power:
11kw
GET A QUOTE
  • 4 Axis Cnc Vertical Machining Sh1160 Vertical Milling Machine Vmc Machine
  • 4 Axis Cnc Vertical Machining Sh1160 Vertical Milling Machine Vmc Machine
  • 4 Axis Cnc Vertical Machining Sh1160 Vertical Milling Machine Vmc Machine
  • 4 Axis Cnc Vertical Machining Sh1160 Vertical Milling Machine Vmc Machine
  • 4 Axis Cnc Vertical Machining Sh1160 Vertical Milling Machine Vmc Machine
  • 4 Axis Cnc Vertical Machining Sh1160 Vertical Milling Machine Vmc Machine
  • 4 Axis Cnc Vertical Machining Sh1160 Vertical Milling Machine Vmc Machine

Description

Key attributes

type
VERTICAL
positioning accuracy
±0.003
repeatability (x/y/z) (mm)
±0.003
table travel (x) (mm)
1100
table travel (y) (mm)
600
table travel (z) (mm)
600
table size
1200x600
spindle taper
BT40
machining capacity
Heavy Duty

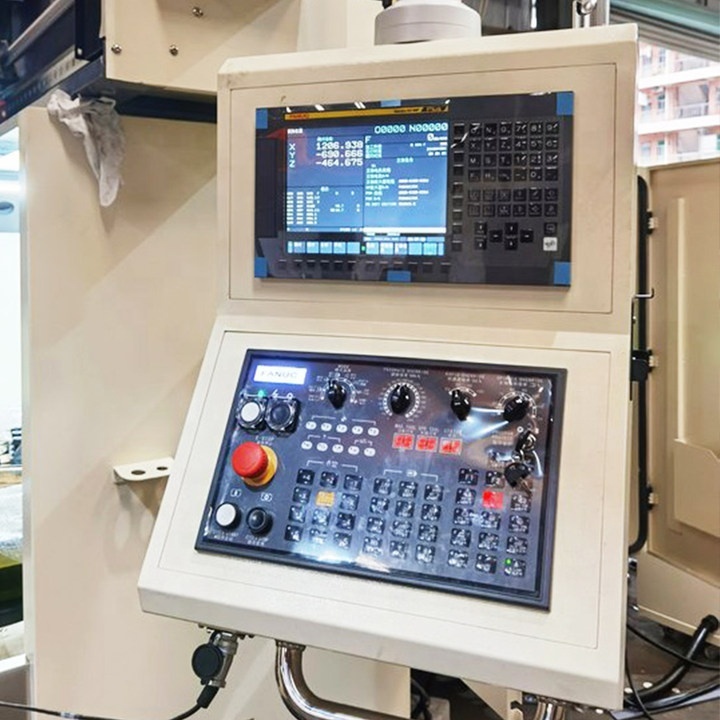

cnc control system
FANUC
tool magazine capacity
24
min. time of tool change(s)
60%, 80%, 0.5
voltage
220 V
no. of spindles
Single
key selling points
High-Accuracy
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
weight (t)
6
max. table load(kg)
800
place of origin
Guangdong, China
dimension(l*w*h)
2700*2500*2750
range of spindle speed
0 - 12000
brand name
URW
rapid feed speed
1 - 8000

Packaging and delivery

Selling Units
Single item
Single package size
1100X600X600 cm
Single gross weight
6000.000 kg
Show more

Product descriptions from the supplier

Product Description
parameteruniteSH-V8SH-V11SH-V13SH-V16SH-V18
X/Y/z travelmm800x500x5001100x650x6001300x700x6201600x650x6501800x650x650
worktable size  mm1000x5001200x6001300x750650x1700650x1900
worktable loadkg800800500650650

T-slot

-3-18x1025-18-100119785-18-1255-18-125

Distance from spindle end to worktable

mm90-640120-720100-720(±10)100-750100-750

Distance from spindle  to colum

mm560665750710710

spindle torque

-BT40BT40BT40BT40BT40
spindle speedrpm/min10000/120008000/100001200010000/1200010000/12000
spindle modelkw7.511111111
X/Y/z modelkw2002/2/32003/3/32003/3/32003/3/32003/3/3
speed  (X/Y/Z)m/min48/48/4830/30/3024/24/2424/24/2424/24/24
tool-Disc typeDisc typeDisc typeDisc typeDisc type
ATC capacity 2424242424
powerkw2025252525
weightkg52007500800085009000
Worktable Load Capacitymm2750x2800x27503200x2800x30003750x3150x30003400x2050x23203400x2050x2320
cnc system-FANUC/Mitsubishi/Siemens/GSK












 4 Axis Cnc Vertical Machining Sh1160 Vertical Milling Machine Vmc Machine4 Axis Cnc Vertical Machining Sh1160 Vertical Milling Machine Vmc Machine









 4 Axis Cnc Vertical Machining Sh1160 Vertical Milling Machine Vmc Machine4 Axis Cnc Vertical Machining Sh1160 Vertical Milling Machine Vmc Machine









4 Axis Cnc Vertical Machining Sh1160 Vertical Milling Machine Vmc Machine
