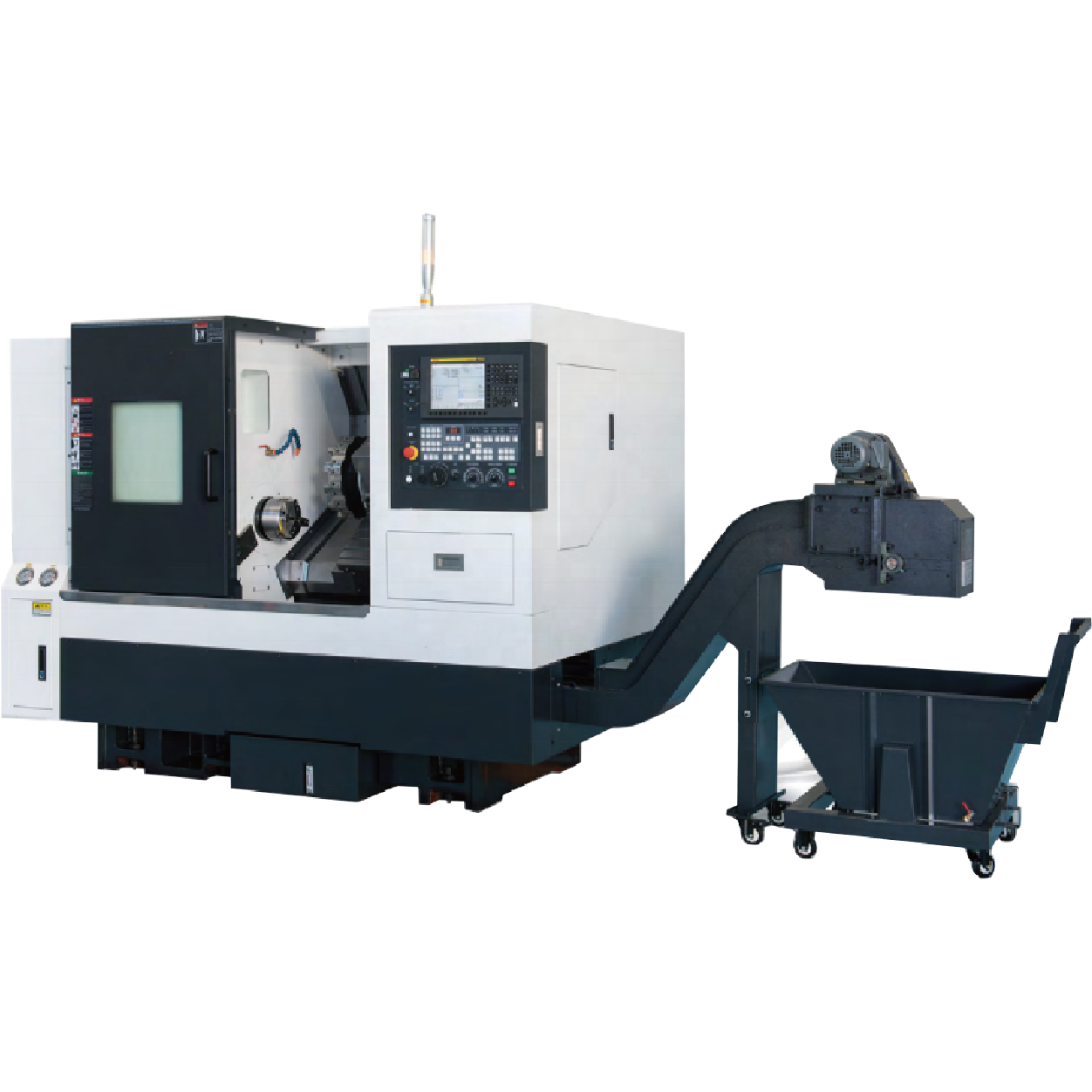

Maximum Swing 510mm Multi Purpose Standard Turning and Milling Compound Lathe

No.1601001167573
$6500.00
max. swing diameter (mm):
450
spindle motor power(kw):
7,5kw
GET A QUOTE
  • Maximum Swing 510mm Multi Purpose Standard Turning and Milling Compound Lathe
  • Maximum Swing 510mm Multi Purpose Standard Turning and Milling Compound Lathe
  • Maximum Swing 510mm Multi Purpose Standard Turning and Milling Compound Lathe
  • Maximum Swing 510mm Multi Purpose Standard Turning and Milling Compound Lathe
  • Maximum Swing 510mm Multi Purpose Standard Turning and Milling Compound Lathe
  • Maximum Swing 510mm Multi Purpose Standard Turning and Milling Compound Lathe

Description

Key attributes

machining capacity
Medium Duty
number of axes
3
no. of spindles
Single
tool post stations
12
max. length of workpiece (mm)
235
key selling points
Competitive Price
repeatability (x/y/z) (mm)
Standard
positioning accuracy (mm)
±0.001
warranty
1 Year
type
CNC Lathe
machinery test report
Provided
video outgoing-inspection
Provided
max. weight of workpiece(kg)
Standard
travel (x axis)(mm)
135
travel (z axis)(mm)
370
place of origin
China
width of bed (mm)
400 mm
weight
2000
Showroom Location
Russia
Warranty of core components
1 Year
Max. Spindle Speed (r.p.m)
2500
Spindle Bore(mm)
87
Name
CNC Mini Metal Lathe
Applicable Industries
Machinery Repair Shops /Manufacturing Plant /Construction works
Core Components
Bearing /motor /Pump /Gear /PLC /Pressure vessel /Gearbox

Packaging and delivery

Selling Units
Single item
Show more

Product descriptions from the supplier

PRODUCT SPECIFICATIONS

Models


SH-200LM
Max. Swing Over Bed
φ510 mm
Max. Turning Diameter
φ250 mm
Max. Turning Length
235mm
Spindle Nose
A2-5(Electric Spindle)
Spindle Motor Power
11KW
Max. Spindle Speed
5000rpm
Spindle Bore
φ56mm
Bar Passage
φ45mm
X/Y/Z Axis Ball Screw Size
3208/2508/3210mm
Stroke Limit of X/Y/Z Axis
135/60/370mm
Tool Turet Capacity
BMT40-12T
Tool Dimension
20/φ25mm
Power Tool Holder
ER20
Dimensions (L×W×H)
1400×1500×1800mm
Weight(Approx Weight)
2000kg
Control System Option: FANUC,MITSUBISHI,SIEMENS,GSK
