Max. Swing Over Bed | φ510 mm | |
Max. Turning Diameter | φ250 mm | |
Max. Turning Length | 260mm | |
Spindle Nose | A2-5 | |
Spindle Motor Power | 7.5KW | |
Max. Spindle Speed | 4500rpm | |
Spindle Bore | φ56mm | |
Bar Passage | 45mm | |
X/Z Axis Ball Screw Size | 3208/3210mm | |
Stroke Limit of X/Z Axis | 135/370mm | |

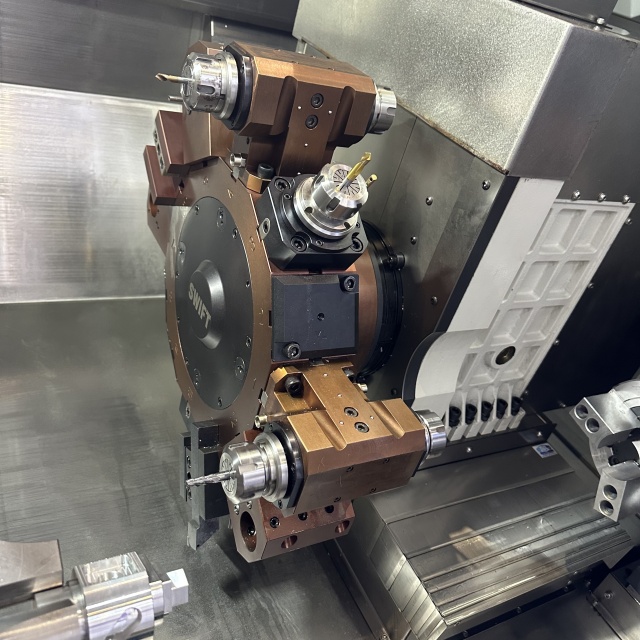

Tool Turet Capacity | 8T | |
Tool Dimension | 20/φ25mm | |
Dimensions (L×W×H) | 1400×1500×1600mm | |
Weight(Approx Weight) | 1800kg | |
Control System Option: FANUC,MITSUBISHI,SIEMENS,GSK | ||
