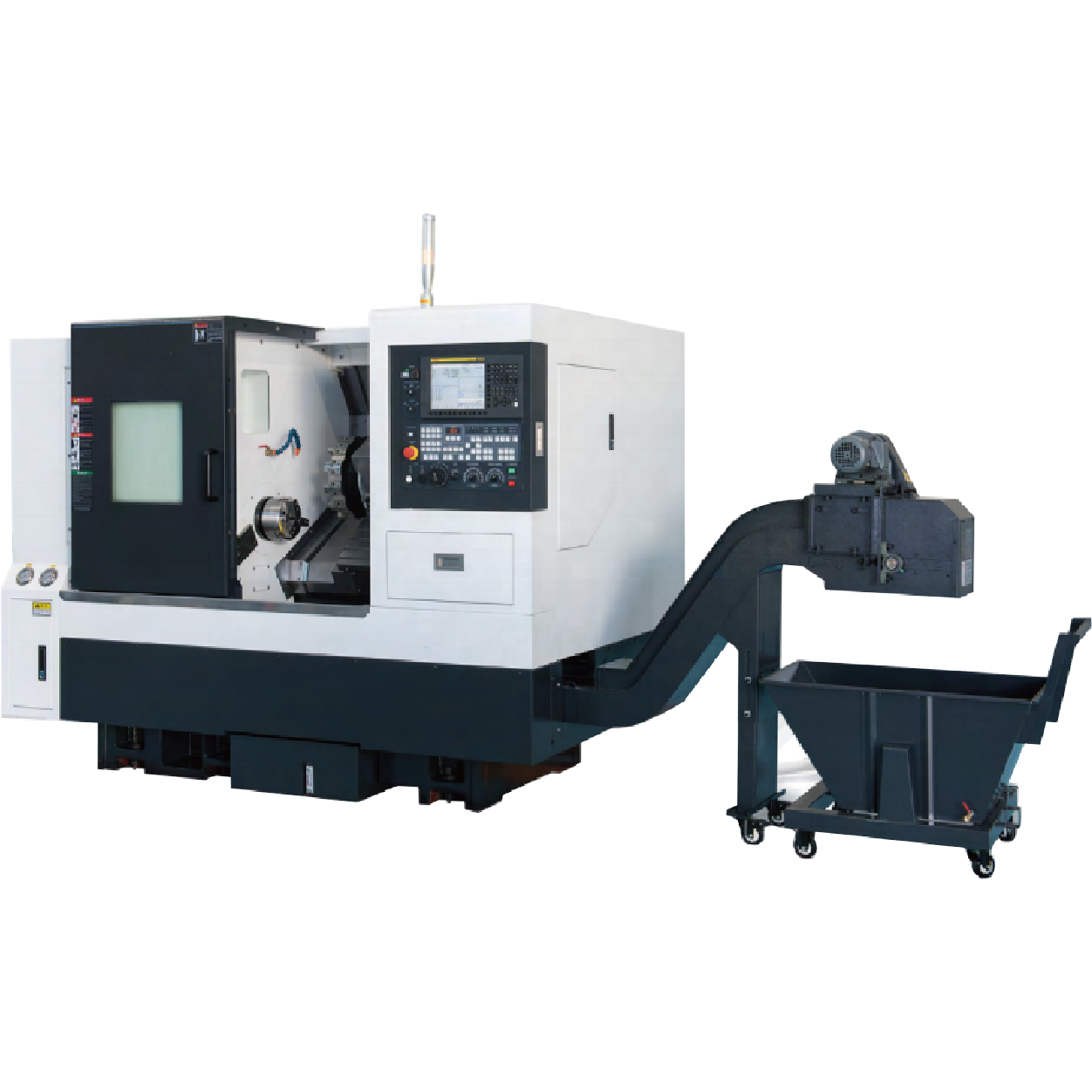

Models
|
SH-630H-750/1000/1500/2000
|
SH-630HM-750/1000/1500/2000
|
||
|
Max. Swing Over Bed
|
φ730mm
|
φ730mm
|
||
|
Max. Turning Diameter
|
φ640mm
|
φ560mm
|
||
|
Turning Diameter Over Slide
|
φ440mm
|
φ440 mm
|
||
|
Max. Turning Length
|
740/1020/1640/2240mm
|
630/930/1530/2130mm
|
||
|

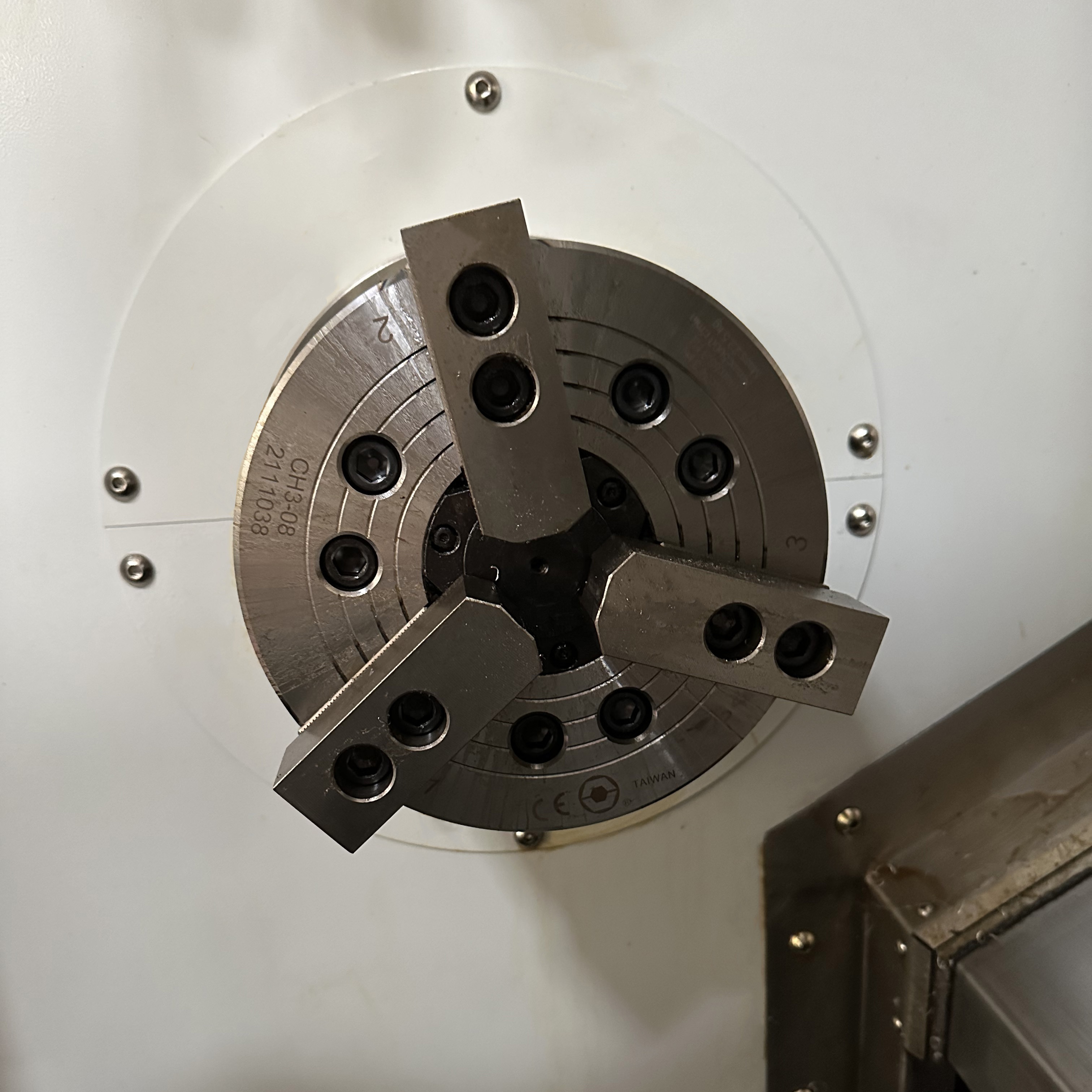

Spindle Nose
|
A2-8(10") OR A2-11(12")
|
A2-8(10°)ORA2-11(12”)
|
||
|
Spindle Motor Power
|
22 KW
|
22KW
|
||
|
Max. Spindle Speed
|
2500rpm
|
2500rpm
|
||
|
Spindle Bore
|
φ87mm
|
φ87mm
|
||
|
Bar Passage
|
φ75mm
|
φ75mm
|
||
|
X/Z Axis Ball Screw Size
|
4008/5010mm
|
4008/5010mm
|
||
|
Stroke Limit of X Axis
|
330mm
|
330mm
|
||
|
Motor Torque of X Axis and Z Axis
|
22N.M
|
22N.M
|
||
|
Stroke Limit of Z Axis
|
940/1240/1840/2440mm
|
940/1240/1840/2440mm
|
||
|
Connection Way of X Axis and Z Axis
|
Direct
|
Direct
|
||
|
Turning Accuracy
|
IT6
|
IT6
|
||
|
Reposition Accuracy
|
0.003mm
|
0.003mm
|
||
|

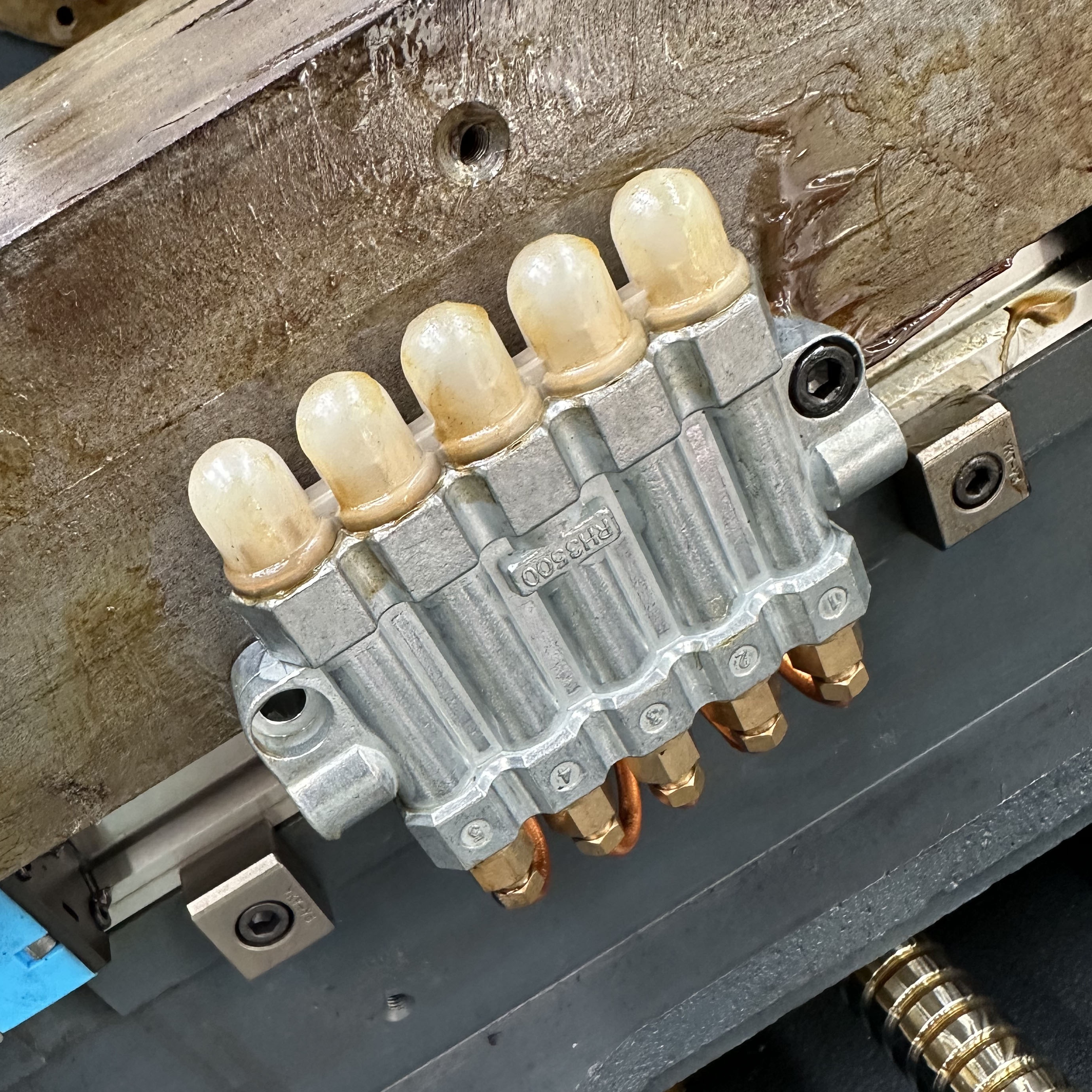

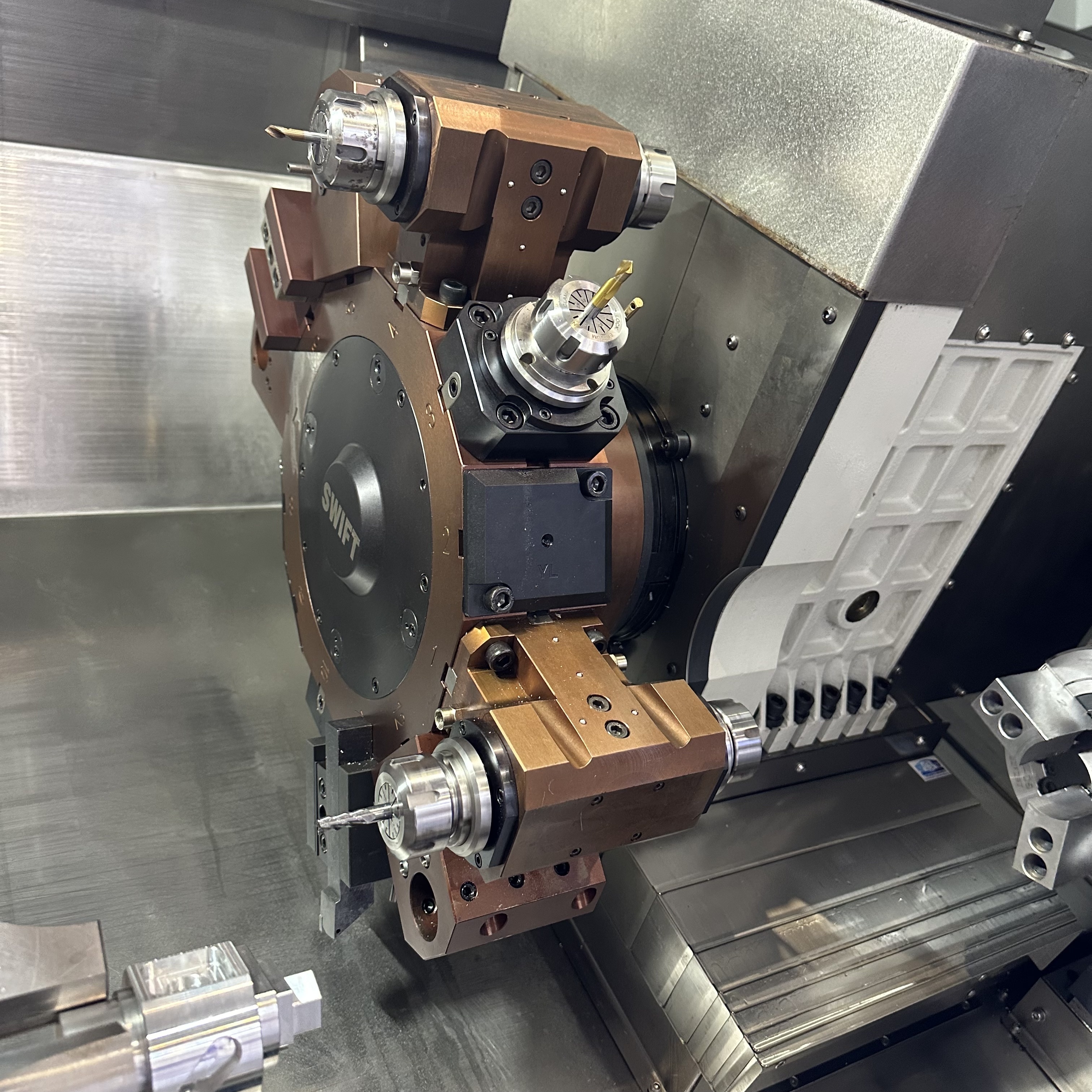

Servo Turret
|
NC125-V12-400
|
BMT65/V12/ER32/4000rpm
|
||
|
Centre Height of Tool Turret
|
125mm
|
125mm
|
||
|
Tool Dimension
|
25×25mm
|
25×25mm
|
||
|
Boring Tool Holder Dimension
|
40mm
|
40mm
|
||
|

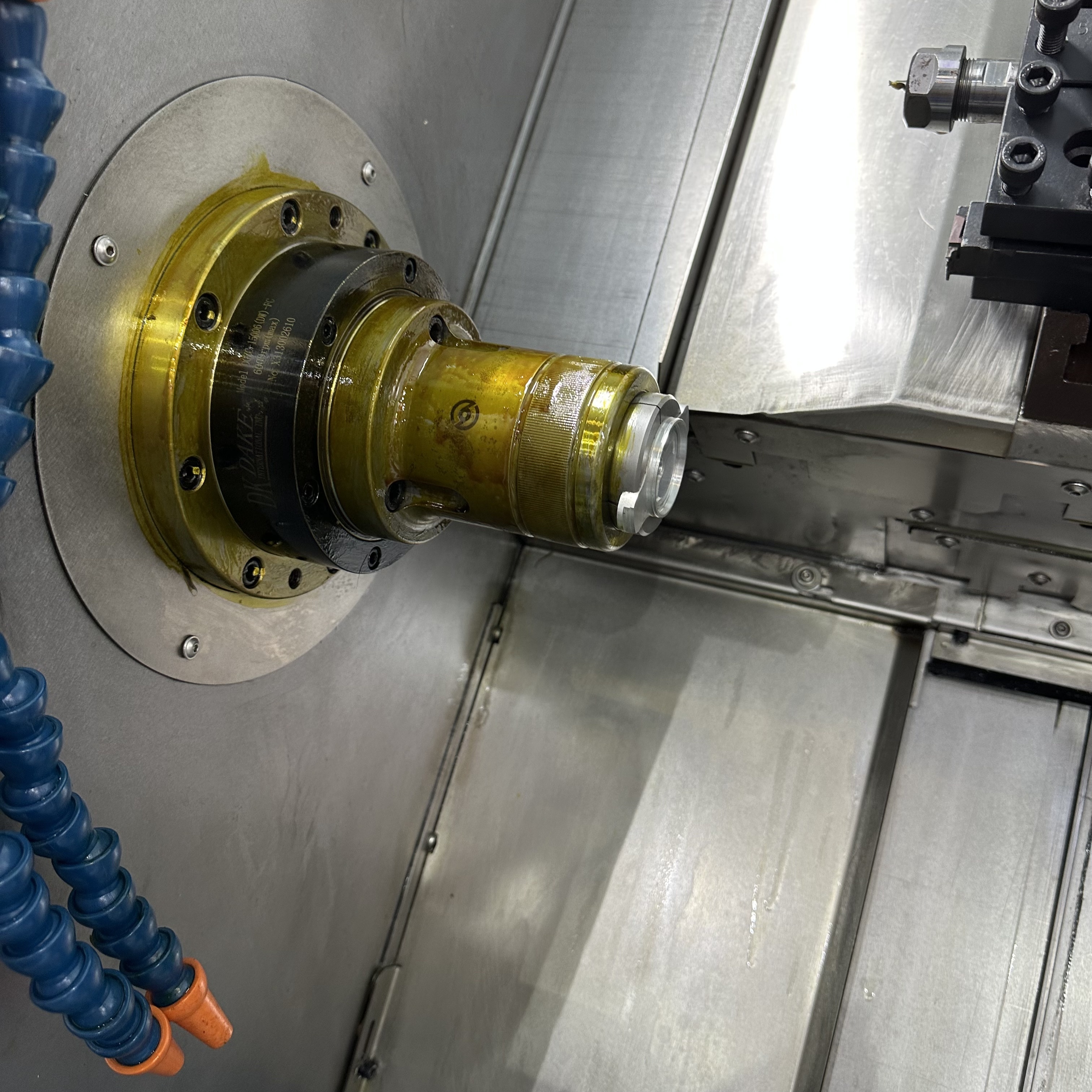

Tailstock Quill Diameter
|
100mm
|
100mm
|
||
|
Tailstock Quill Travel
|
80mm
|
80mm
|
||
|
Max.Stroke of Tailstock
|
785/1085/1685/2285mm
|
785/1085/1685/2285mm
|
||
|
Taper of Tailstock Quill
|
Mosh #5
|
Mohs#5
|
||
|

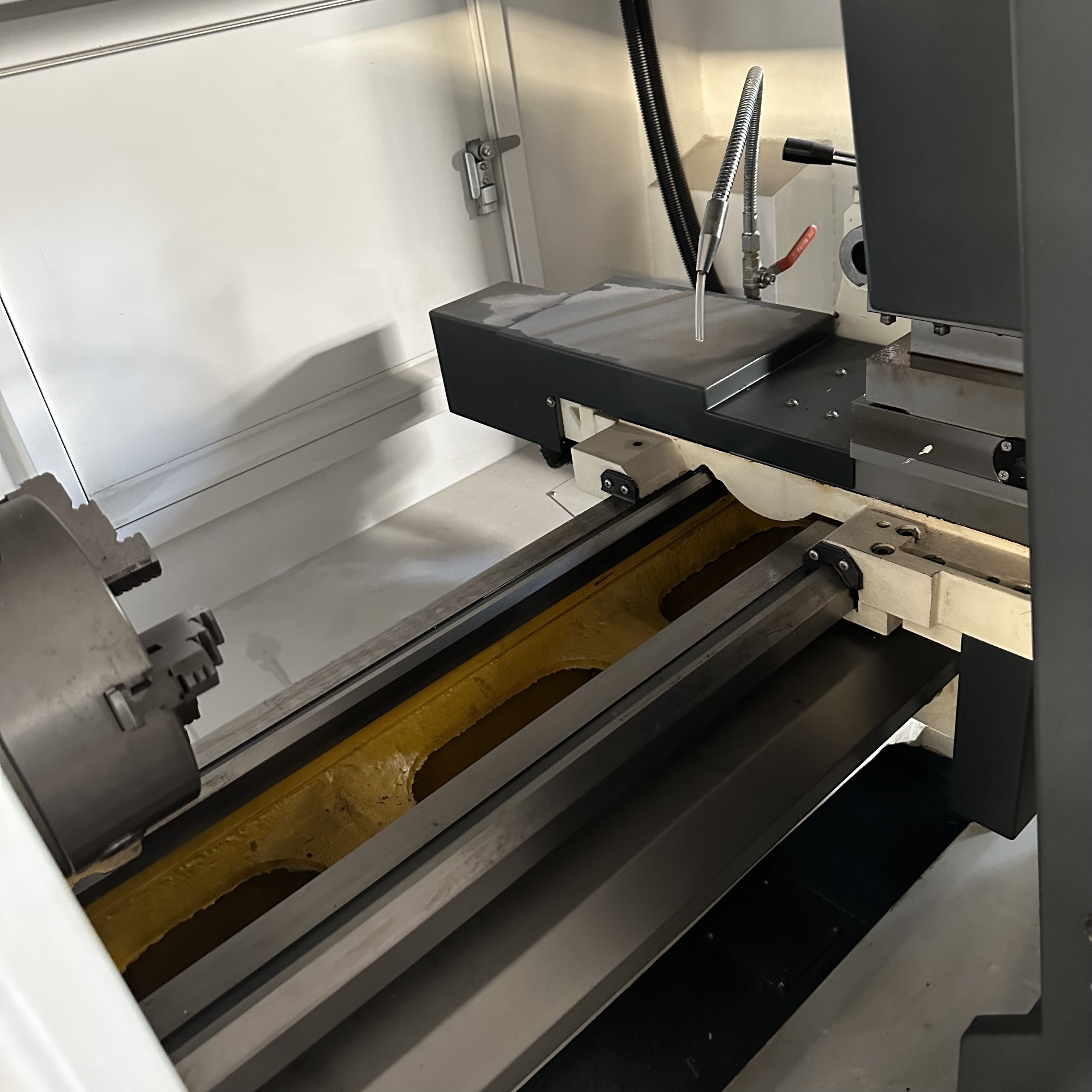

Bed Type and Tilt(L/W/H)
|
30° integral slant bed
4200/1900/1850 |
30° integral slant bed
4200/1900/1850 |
||
|
Weight(Approx Weight)
|
7.5T/8.5T/10.5T/12.5T
|
8T/9T/11T/13T
|
||
|
Control System Option: FANUC,MITSUBISHI,SIEMENS,GSK
|
||||
