Models
|
SH-36S
|
SH-46S
|
SH-52S
|
|||
|
Recommended Tuming Diameter
|
φ8-60mm
|
φ10-100mm
|
φ20-150mm
|
|||
|
Max. Tuning Diameter
|
120mm
|
150mm
|
200mm
|
|||
|

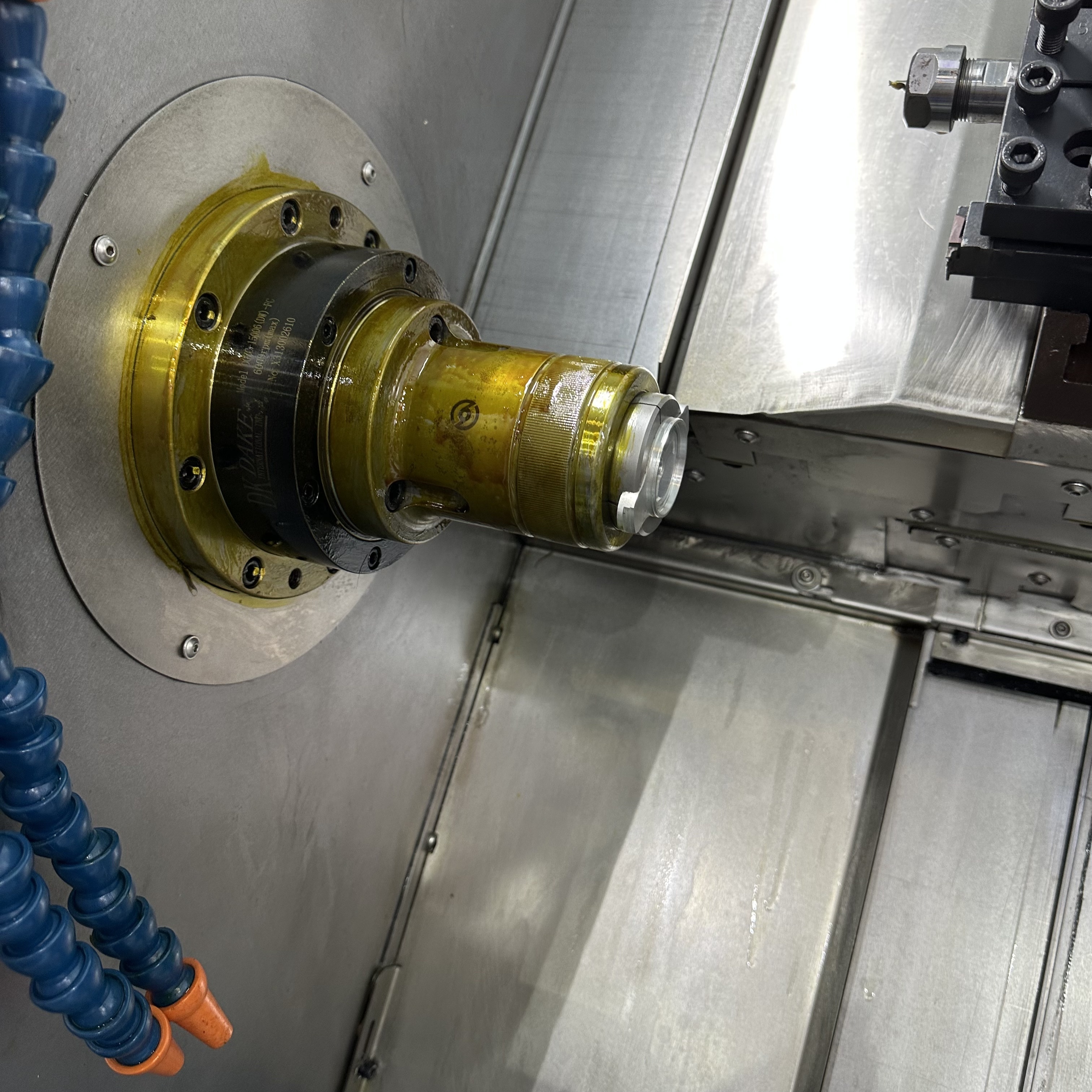

Spindle Nose
|
A2-4
|
A2-5
|
A2-5
|
|||
|
Workpiece Diameter
|
φ35mm
|
φ45mm
|
φ51mm
|
|||
|
Spindle Range
|
0~5000r/min
|
0~4500r/mim
|
0~3500r/min
|
|||
|
Rapid on X/Y Axis
|
24m/min
|
24m/min
|
24m/min
|
|||
|
Travel X-axis
|
700mm
|
900mm
|
900mm
|
|||
|
Travel Z-axis
|
230mm
|
280mm
|
380mm
|
|||
|
Weight
|
1580kg
|
2380kg
|
3000kg
|
|||
|
L× W× H
|
1550x1300x1480mm
|
2300x1450x1750mm
|
2300x1450x1750mm
|
|||
|

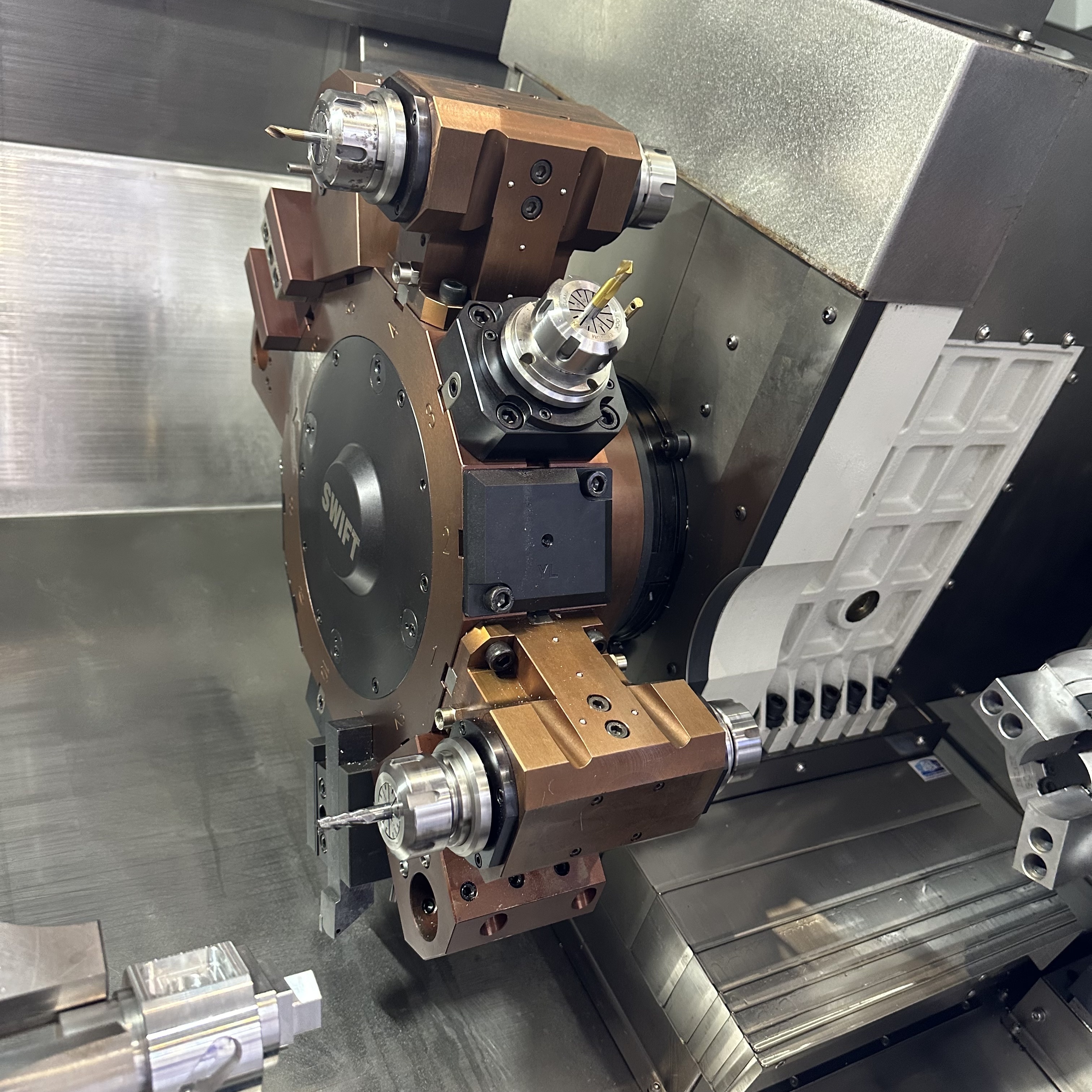

Tool Turret Capacity
|
/
|
63-8
|
63-8
|
|||
|
Power Tool Turret
|
/
|
/
|
63-12
|
|||
|
Enlarge Spindle
|
/
|
/
|
76mm Spindle Bore
|
|||
|
Control System Option: FANUC,MITSUBISHI,SIEMENS,GSK
|
||||||
