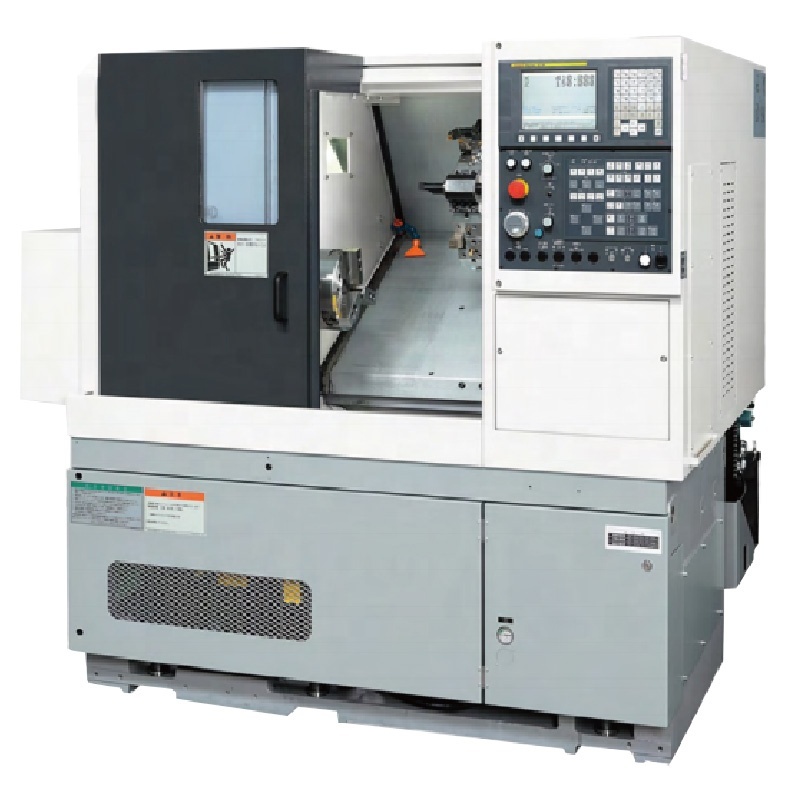

SH-150L 30 Degree Slant Bed Turning and Milling Compound Machine Compact Mini Lathe

No.1600979310221
$14000.00
max. swing diameter (mm):
510
spindle motor power(kw):
5.5KW
GET A QUOTE
  • SH-150L 30 Degree Slant Bed Turning and Milling Compound Machine Compact Mini Lathe
  • SH-150L 30 Degree Slant Bed Turning and Milling Compound Machine Compact Mini Lathe
  • SH-150L 30 Degree Slant Bed Turning and Milling Compound Machine Compact Mini Lathe
  • SH-150L 30 Degree Slant Bed Turning and Milling Compound Machine Compact Mini Lathe
  • SH-150L 30 Degree Slant Bed Turning and Milling Compound Machine Compact Mini Lathe
  • SH-150L 30 Degree Slant Bed Turning and Milling Compound Machine Compact Mini Lathe
  • SH-150L 30 Degree Slant Bed Turning and Milling Compound Machine Compact Mini Lathe

Description

Key attributes

voltage
380 V
machining capacity
Medium Duty
number of axes
2
no. of spindles
Single
tool post stations
8
max. length of workpiece (mm)
260
key selling points
Competitive Price
repeatability (x/y/z) (mm)
±0.001
positioning accuracy (mm)
±0.002
warranty
1 Year
type
CNC Lathe
machinery test report
Provided
video outgoing-inspection
Provided
max. weight of workpiece(kg)
100
travel (x axis)(mm)
135
travel (z axis)(mm)
370
place of origin
China
width of bed (mm)
300 mm
weight
1800
range of spindle speed
21 - 1000
cutting torque
6

Packaging and delivery

Selling Units
Single item
Show more

Product descriptions from the supplier

Video Description

00:53/02:10
PRODUCT SPECIFICATIONS

Models


SH-200L
Max. Swing Over Bed
φ510 mm
Max. Turning Diameter
φ250 mm
Max. Turning Length
260mm
Spindle Nose
A2-5
Spindle Motor Power
7.5KW
Max. Spindle Speed
4500rpm
Spindle Bore
φ56mm
Bar Passage
45mm
X/Z Axis Ball Screw Size
3208/3210mm
Stroke Limit of X/Z Axis
135/370mm
Tool Turet Capacity
8T
Tool Dimension
20/φ25mm
Dimensions (L×W×H)
1400×1500×1600mm
Weight(Approx Weight)
1800kg
Control System Option: FANUC,MITSUBISHI,SIEMENS,GSK
