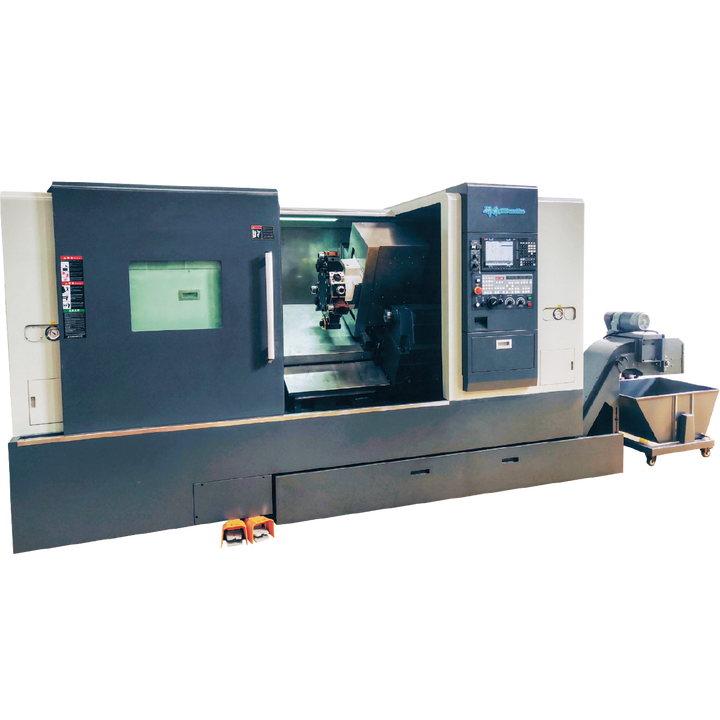

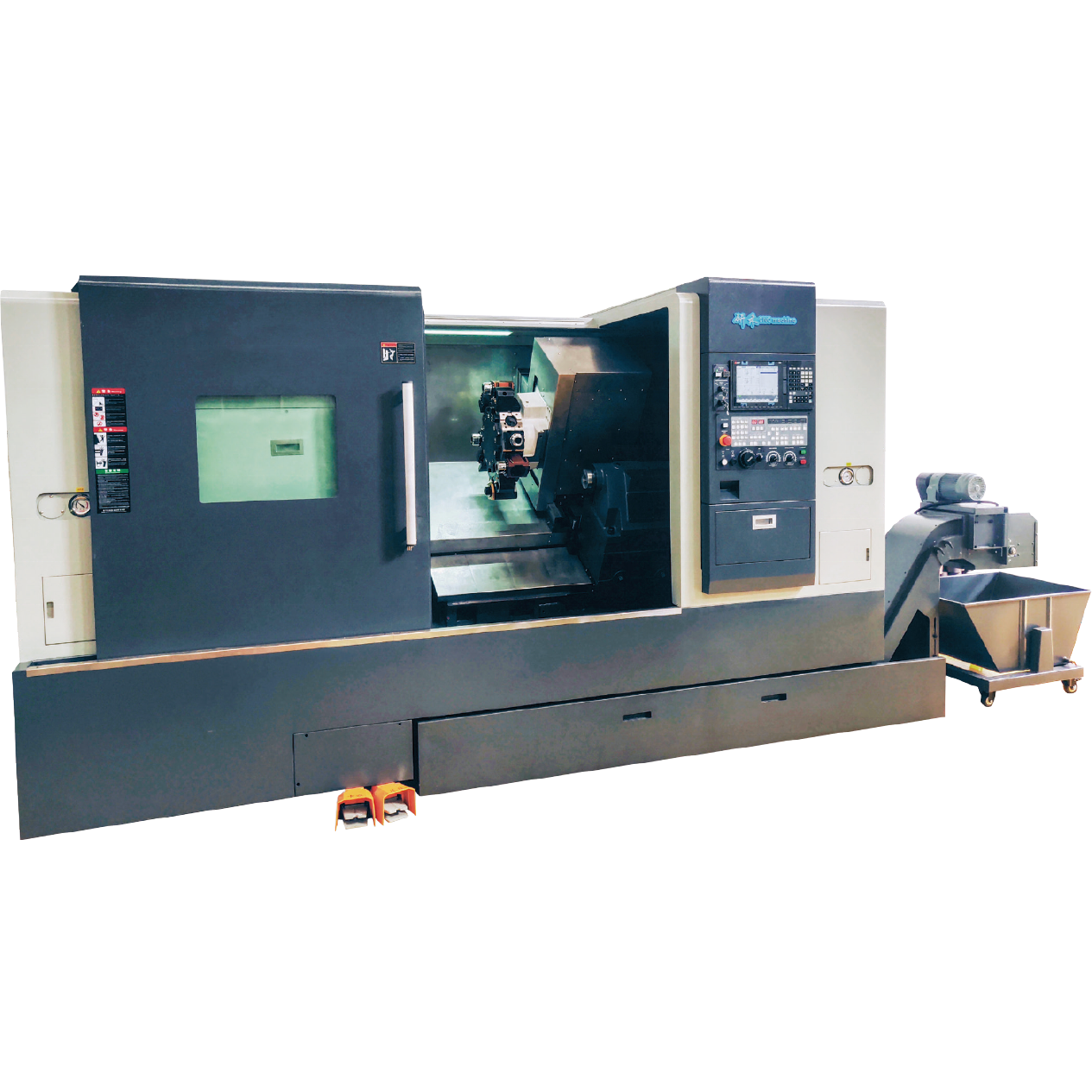

Name: SH-630HMY-1500 Heavy Duty Cnc Lathe and 3 Axis Slant Bed Cnc Metal Lathe for Metal Turning Machine Tool
Brand: gotomachinetool.com
SKU: 1601411529139
Price: 45000.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Description

Key attributes

voltage

380 V, 220 V

machining capacity

Heavy Duty

number of axes

no. of spindles

Single

tool post stations

max. length of workpiece (mm)

1550

key selling points

Competitive Price

repeatability (x/y/z) (mm)

Standard

positioning accuracy (mm)

±0.001

warranty

1 Year

type

CNC Lathe

machinery test report

Provided

video outgoing-inspection

Provided

max. weight of workpiece(kg)

Standard

travel (x axis)(mm)

300

travel (z axis)(mm)

1840

place of origin

Guangdong, China

width of bed (mm)

300 mm

dimension(l*w*h)

Standard size

brand name

OEM

weight

10500

range of spindle speed

0 - 2500

cutting torque

Name

High Precision CNC Lathe Machine

Applicable Industries

Machinery Repair Shops /Manufacturing Plant /Construction works

Showroom Location

Russia

Warranty of core components

1 Year

Core Components

Bearing /motor /Pump /Gear /PLC /Pressure vessel /Gearbox

Spindle Bore(mm)

Max. Spindle Speed (r.p.m)

2500

Packaging and delivery

Selling Units

Single item

Single package size

4200X1900X1850 cm

Single gross weight

1.000 kg

Product descriptions from the supplier

PRODUCT SPECIFICATIONS

Models	SH-630HMY-750/1000/1500/2000
Max. Swing Over Bed	φ920 mm
Max. Turning Diameter	φ600 mm
Turning Diameter Over Slide	φ440 mm
Max. Turning Length	650/950/1550/2100mm
Spindle Nose	A2-8(10”) OR A2-11(12")
Spindle Motor Power	22KW
Max. Spindle Speed	2500rpm
Spindle Bore	φ87mm
Bar Passage	φ75mm
X/Z Axis Ball Screw Size	4008/5010/3208mm
Stroke Limit of X Axis	330mm
Motor Torque of X Axis and Z Axis	22/22/15N.M
Stroke Limit of Z Axis	940/1240/1840/2440mm
Connection Way of X Axis and Z Axis	Direct/Direct/Sync Wheel
Turning Accuracy	IT6
Reposition Accuracy	0.003mm
Servo Turret	BMT65/ER32/4000PM
Tool Dimension	25×25mm
Boring Tool Holder Dimension	40mm
Tailstock Quill Diameter	100mm
Tailstock Quill Travel	80mm
Max.Stroke of Tailstock	785/1085/1685/2285mm
Taper of Tailstock Quill	Mohs#5

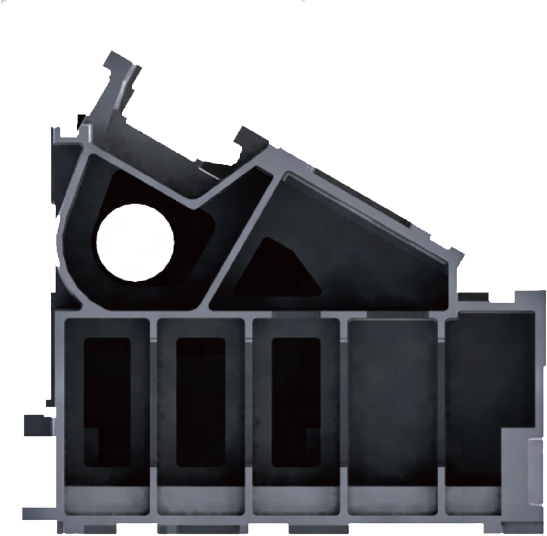

Bed Type and Tilt(L/W/H)	30° integral slant bed 4200/1900/1850
Weight(Approx Weight)	7.5T/8.5T/10.5T/12.5T

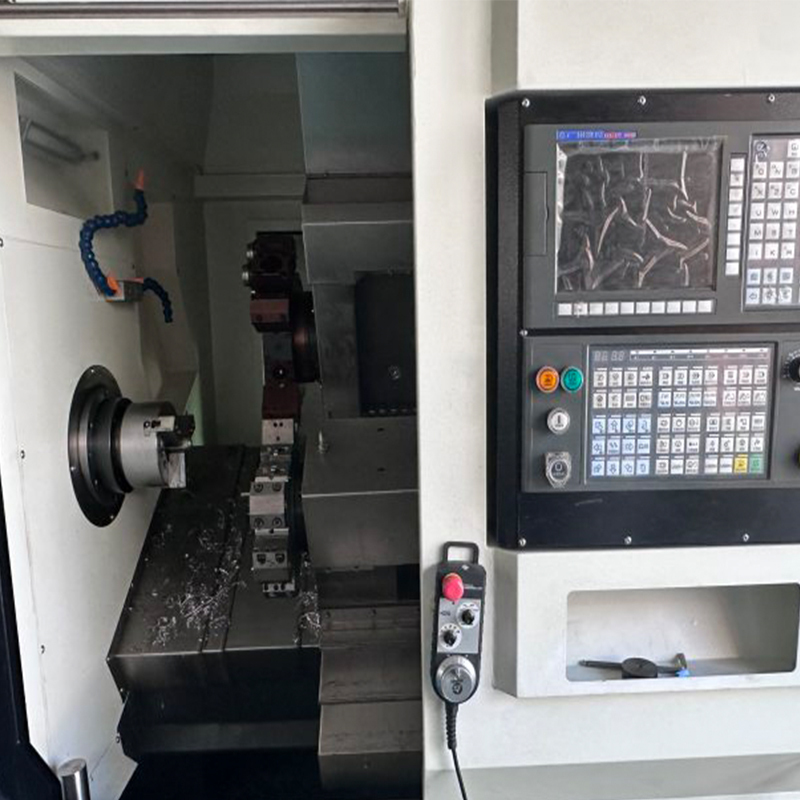

Control System Option: FANUC,MITSUBISHI,SIEMENS,GSK

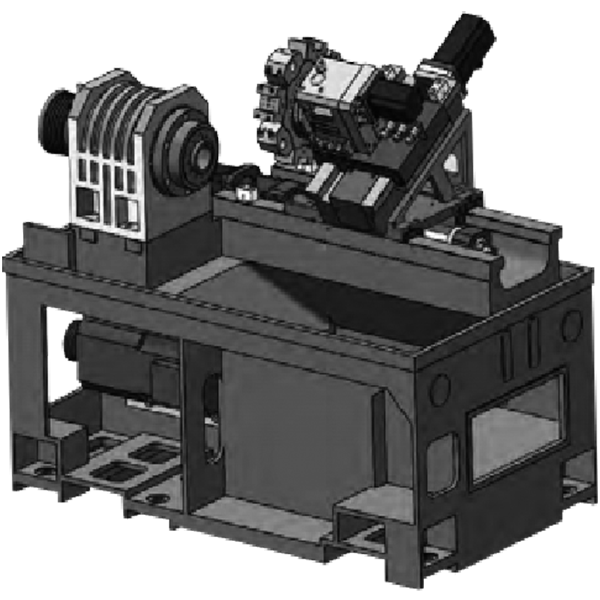

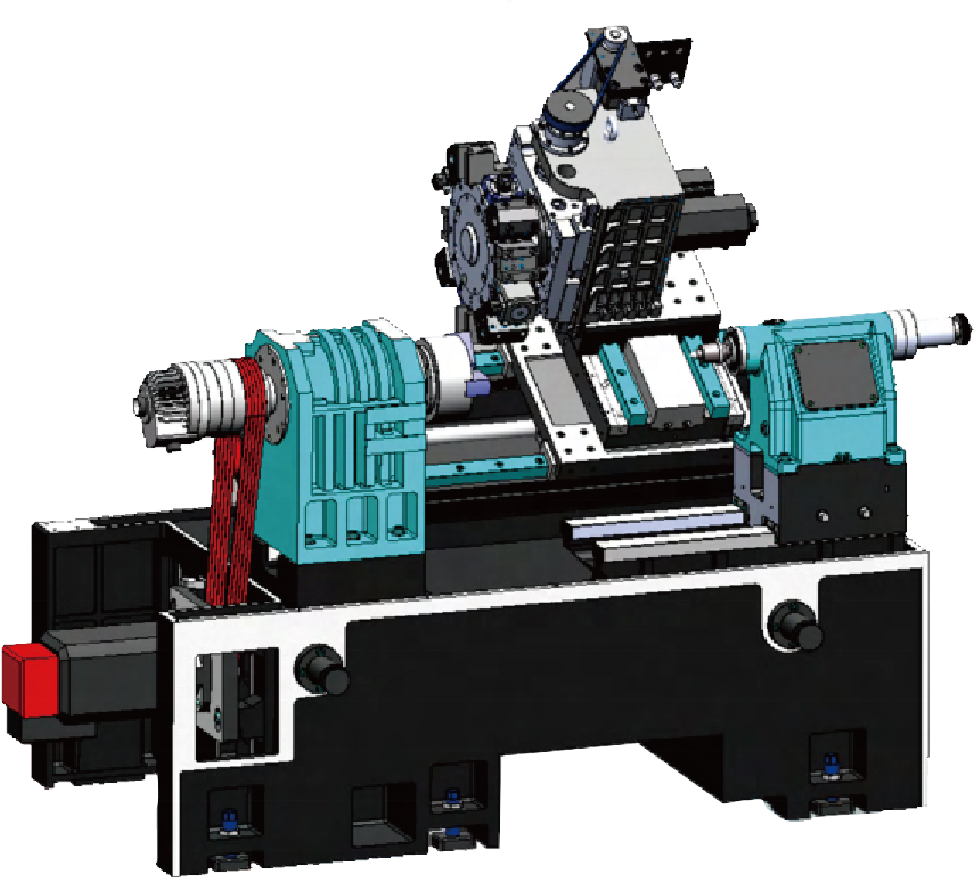

PRODUCT CONFIGURATION

SALES AND SERVICE NETWORK
