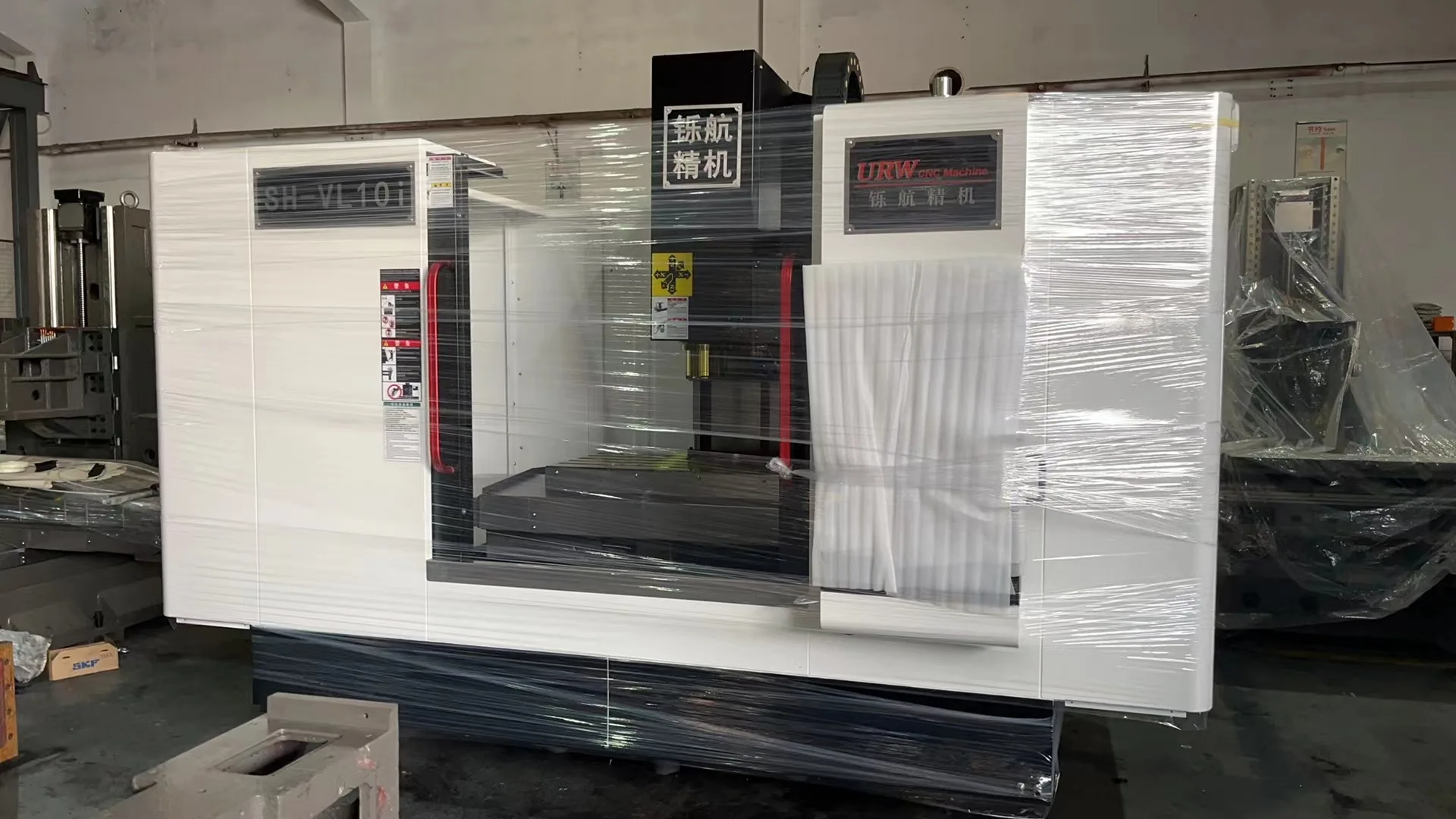

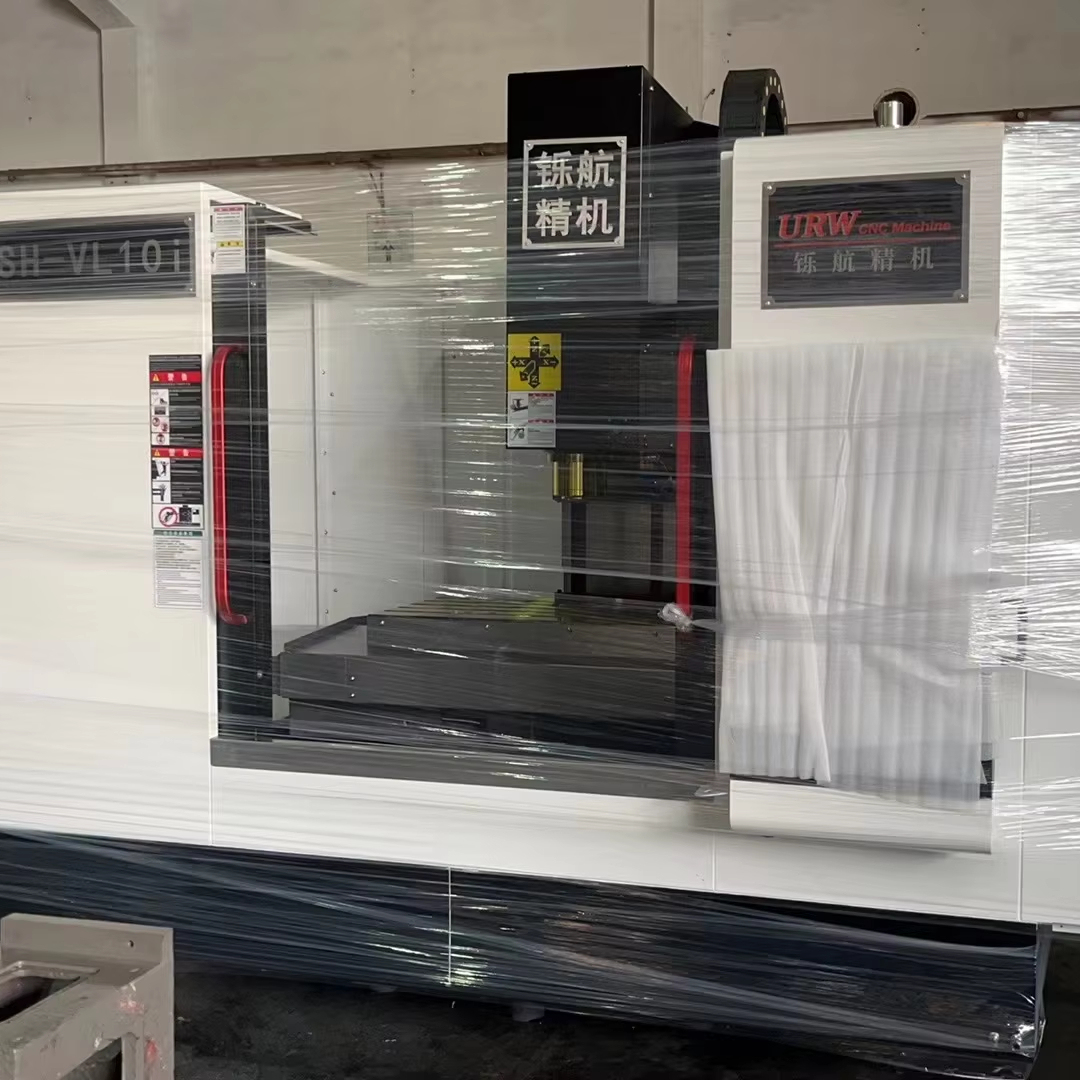

VMC - V1160 vertical machining center is a medium -sized machine tool. After the workpiece is clamped once, it can automatically and continuously complete milling, drilling, boring, expanding, reaming, countersinking, tapping and other processes. The machine tool is suitable for multi-variety small and medium-volume processing of complex parts such as small and medium-sized boxes, plates, discs, valves, shells, molds, etc. The machine tool adopts high-precision linear rails and lead screws. The machine tool has better dynamic responsiveness, can achieve high-speed cutting, low-speed without creeping, and is widely used in precision molds, parts, 3C products, automation accessories, hardware, auto parts, and medical equipment industries.
parameter
| parameter | unite | SH-V8 | SH-V11 | SH-V13 | SH-V16 | SH-V18 | | X/Y/z travel | mm | 800x500x500 | 1100x650x600 | 1300x700x620 | 1600x650x650 | 1800x650x650 | | worktable size | mm | 1000x500 | 1200x600 | 1300x750 | 650x1700 | 650x1900 | | worktable load | kg | 800 | 800 | 500 | 650 | 650 | T-slot | - | 3-18x102 | 5-18-100 | 11978 | 5-18-125 | 5-18-125 | Distance from spindle end to worktable | mm | 90-640 | 120-720 | 100-720(±10) | 100-750 | 100-750 | Distance from spindle to colum | mm | 560 | 665 | 750 | 710 | 710 | spindle torque | - | BT40 | BT40 | BT40 | BT40 | BT40 | | spindle speed | rpm/min | 10000/12000 | 8000/10000 | 12000 | 10000/12000 | 10000/12000 | | spindle model | kw | 7.5 | 11 | 11 | 11 | 11 | | X/Y/z model | kw | 2002/2/3 | 2003/3/3 | 2003/3/3 | 2003/3/3 | 2003/3/3 | | speed (X/Y/Z) | m/min | 48/48/48 | 30/30/30 | 24/24/24 | 24/24/24 | 24/24/24 | | tool | - | Disc type | Disc type | Disc type | Disc type | Disc type | | ATC capacity | | 24 | 24 | 24 | 24 | 24 | | power | kw | 20 | 25 | 25 | 25 | 25 | | weight | kg | 5200 | 7500 | 8000 | 8500 | 9000 | | Worktable Load Capacity | mm | 2750x2800x2750 | 3200x2800x3000 | 3750x3150x3000 | 3400x2050x2320 | 3400x2050x2320 | | cnc system | - | FANUC/Mitsubishi/Siemens/GSK |
| |
